Decoder description
Inmarsat std-C is a text messaging system that is in widespread use around the world, mostly among maritime users. Over 100,000 terminals are being used every day to send emails and other short text messages.
This decoder allows you to fully reconstruct all types of messages, so compressed archives and images can be received. Decoder was designed especially for std-C, fine-tuned and tested, bringing you uncomparable performance.

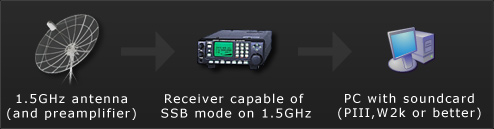

Requirements
- Antenna - 60cm or bigger dish antenna with
L-Band feed and low noise amplifier - Receiver - SSB capable receiver that can tune
1520MHz to 1550MHz. - Computer - P-III class PC running Windows2000
(or better) with soundcard
Decoder GUI UPDATED
Decoder GUI application is now available for FREE to current and all new customers!
This application greatly simplifies decoder configuration and tuning:
Current version: v0.4
Released: 2016-09-21
Note that this application doesn't work with DEMO version!
This application greatly simplifies decoder configuration and tuning:
- FFT display for signal tuning
- All decoder settings can be easily configured
- Configuration can be saved to file and loaded later
- Application also includes decoder ouput display with message level highlighting and filtering
- No installation needed - just copy to same directory as decoder and run
- There is no limit on how many GUI applications you can run on single PC
Current version: v0.4
Released: 2016-09-21
Note that this application doesn't work with DEMO version!
Feature table
Feature | std-C decoder Standard | WAVECOM 'SAT' option | Hoka Code300 |
---|---|---|---|
Low cost, high performance | Yes | No | No |
Sound card based input | Yes | No | Yes |
Wide Range AFC tracking | Yes | Yes | No |
User-definable sample rate | Yes | No | No |
Save messages by SES ID | Yes | Yes | No |
Save raw binary frame | Yes | No | No |
Save messages to disk | Yes | Yes | Yes |
Parse message attachments | Yes | No | No |
Parse 'Office' Documents | Yes | No | No |
Reassemble multi-frame messages | Yes | Yes | No |
Enhanced Group Calling | Yes | Yes | Yes |
SafetyNET & FleetNET decode | Yes | Yes | No |
Full decode of bulletin-board | Yes | No | No |
Display CES capabilities | Yes | No | No |
Data Reporting decode | Yes | Yes | No |
Polling decode | Yes | Yes | No |
CES frequency decoding | Yes | No | No |
SES frequency allocation decoding | Yes | Yes | No |
Log in / Log out decode | Yes | Yes | No |
Demo version
Demo version with decoding limited to EGC (broadcast) messages is available as freeware for non-commercial use.
Features present in demo version:
Features present in demo version:
- EGC messages decoding and parsing (ASCII/ITA2/binary)
- Full decoding of bulletin board, frequency lists, login ACKs
Current demo version: 1.0 (Released 2009-03-17, Better installer added on 2016-09-21)
Full version
Full version for personal use is available for 100€. This includes any future updates and support over email and IRC.
Payments are accepted over PayPal and from fully verified accounts only. If you are interested in purchasing full version or have any questions, you can contact me using email address at bottom of page.
Payments are accepted over PayPal and from fully verified accounts only. If you are interested in purchasing full version or have any questions, you can contact me using email address at bottom of page.
Disclaimer
By downloading software from this site you agree to following terms:
This software should only be used to receive Inmarsat-C transmissions for which you are licensed. Reception of
other messages may not be legal in your country, and therefore your local laws should be checked and complied
with. WWW.INMARSATDECODER.COM is not responsible for unlawful use of this decoder software.
This software should only be used to receive Inmarsat-C transmissions for which you are licensed. Reception of
other messages may not be legal in your country, and therefore your local laws should be checked and complied
with. WWW.INMARSATDECODER.COM is not responsible for unlawful use of this decoder software.
